Christmas Lights Garland Frame Machine Embroidery Design

By knowing the speed of your embroidery machine, you can find out how long it will take to embroider a design.
To use the embroidery calculator, click on the number of stitches in the product description.

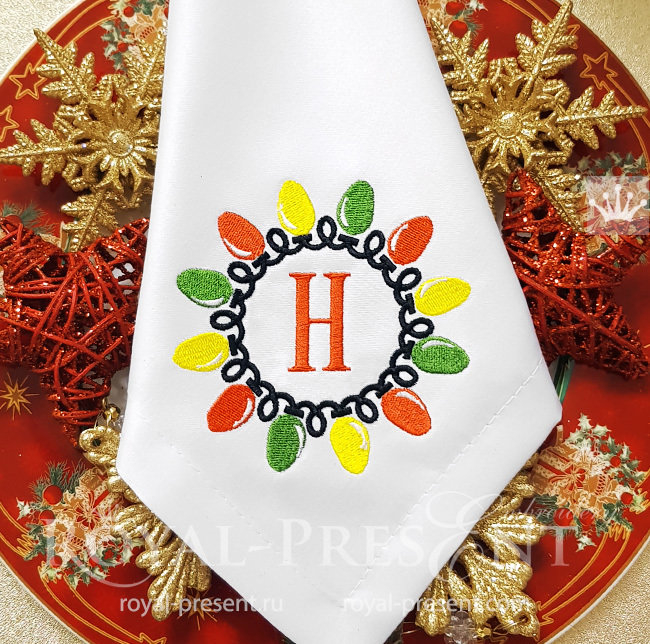

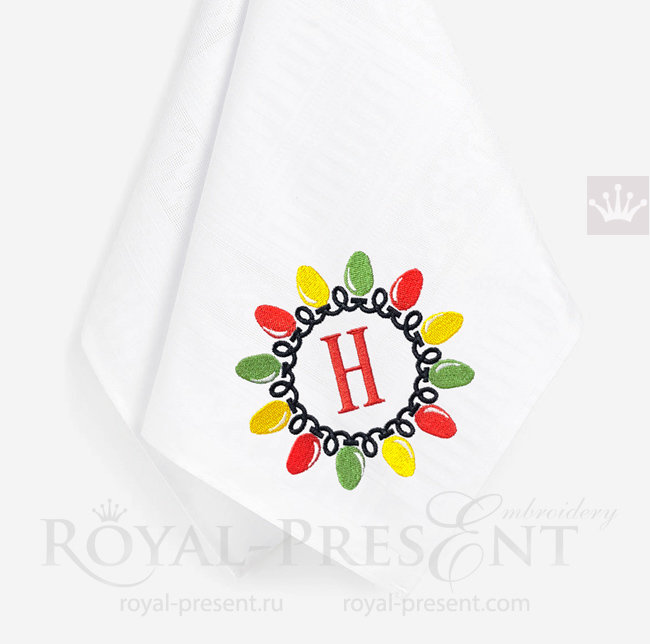

Christmas Lights Garland Frame Machine Embroidery Design forms a complete festive ring from red, yellow and green bulbs connected by a black curled cord. The open center is intended for a separate initial, name or short inscription. The red letter H shown in the product photograph is a project example; the alphabet is not included.

This is one complete frame, not a set of loose border elements. It stitches in one hooping and suits monogrammed dinner napkins, guest towels, stocking cuffs, gift bags, cushion panels and small Christmas wall decor.

Design details

Size: 97.8x97.8 mm (3.85x3.85 "), Stitches: 10450
Formats: .pes, .pec, .hus, .vip, .dst, .exp, .sew, .exp, .dat, .vp3, .jef, xxx

4x4 hoop fit and placement

The published design size is 97.8x97.8 mm (3.85x3.85 "), so the frame fits a true 100x100 mm embroidery field. The remaining margin is narrow: 2.2 mm across the full width and height, or approximately 1.1 mm on each side when perfectly centered. Check the file dimensions on the machine screen before stitching and do not move the design away from the hoop center.

Mark both the horizontal and vertical center lines on the fabric. Hoop woven fabric on grain, align the marks with the hoop template and use a basting box if the machine offers one. A small diagonal shift is visible immediately because the frame is almost as wide as the available field.

How to add a monogram without shifting the frame

1. Measure the open center in embroidery software. Use the actual free space inside the curled cord, not the overall 97.8 mm frame size.
2. Choose the letter after measuring. Font height alone does not show the true width, side bearings or decorative swashes.
3. Center the letter and frame to the same origin. Import both files into one 100x100 mm workspace and check the combined bounding box before saving.
4. Keep the fabric hooped. If the machine cannot combine designs, stitch the frame and then select the separate letter without removing or rotating the hoop.
5. Check clearance at the widest points. The letter must not touch the cord or bulb bases, even if its top and bottom appear to fit.

Visible color palette

The public product page does not publish Madeira numbers or the programmed color-block order. The table below records the four color roles visible in the stitched sample; it is a visual palette, not a substitute for the color sequence read by the embroidery machine.

Use 40-weight polyester for napkins, towels, stockings and gift bags that will be washed or handled frequently. Rayon No. 40 gives a softer sheen on decorative cushions and framed panels. Keep the machine’s programmed stop order; do not merge repeated colors automatically unless the stitch path has been checked in embroidery software.

For a sparkling cable, test a smooth 40-weight metallic or polyester sparkle thread only in the black cord blocks. Use a Metallic 90/14 needle, reduce the machine speed and keep the thread path straight. Flat ribbon-style metallic thread is less forgiving in the design’s many tight curls.

Fabric, stabilizer and needle

For small linen projects, the tutorial on machine embroidery on handkerchiefs and fine linen explains placement, hooping and clean-back options that also apply to napkins and sachets.

Tips for a round frame and a clean monogram

• Do not stretch the fabric to remove wrinkles. A stretched square returns to shape after unhooping and can pull the light ring into an oval.
• Test the black cord on the final fabric color. It provides the visual structure; if it disappears into navy, black or deep green cloth, replace it with a contrasting shade.
• Match thread behavior. If the separate letter is dense satin, use the same thread type and compatible tension so it does not look heavier than the frame.
• Keep topping away from the hoop edge. The file nearly fills a 100x100 mm field, so loose topping must not fold under the presser foot.
• Check the center before stitching. The blank area may look larger on screen than it is once the curled cable and bulb bases are embroidered.
• Press from the reverse. Place the finished embroidery face down on a soft towel so the filled bulbs are not flattened.

Project ideas

• personalized cocktail or dinner napkins with one initial;
• guest towels and kitchen towels for a matching Christmas set;
• stocking cuffs and fabric gift bags labelled for each family member;
• small cushion fronts or a series of family monogram pillows;
• sachets, wine bags, bread-basket liners and reusable fabric wrapping;
• a wall panel with a short word placed inside the light-bulb ring.

For more ideas on spacing a separate monogram inside a festive wreath, see the guide to Christmas wreath and monogram embroidery.

You may also like

These designs provide alternative Christmas frames or separate lettering for personalized holiday textiles.

Christmas Monogram Frame 4 sizes

Holly Monogram Frame with Bow 2 sizes

Christmas Star Frame 3 sizes

Christmas Capital Letters 4x4 hoop

Frequently asked questions

Is the red letter H included?

No. The embroidery file contains the Christmas light-bulb frame. The letter in the product photograph demonstrates one way to personalize the blank center; the alphabet must be selected separately.

Does the complete frame fit a 4x4 hoop?

Yes. The exact published size is 97.8x97.8 mm (3.85x3.85 "), which fits within a true 100x100 mm embroidery field. Because the margin is narrow, keep the design centered and confirm it on the machine screen.

Is this a multi-part border that needs joining?

No. It is one complete frame and stitches in one hooping. The separate Christmas Garland 3 in 1 product contains joining border elements; this item does not.

Can I add a letter from another alphabet?

Yes, if its actual stitched width and height fit the open center. Measure the letter in embroidery software, center it to the frame and check the combined file before stitching.

Which stabilizer is best for a linen napkin?

Use medium-weight tear-away for stable medium linen. For thin or loose-weave linen, use light cut-away or no-show mesh. A fibrous wash-away backing is an option when a cleaner reverse is important, but test the complete design first.

How should the colors be changed for dark fabric?

Keep the red, yellow and green bulbs bright, but replace the black cord with ivory, pale gold or silver so the circular structure remains visible. Test the chosen cord color beside every bulb shade.

Can metallic thread be used for the cord?

Yes, after a sample. Use a smooth metallic or sparkle thread, a Metallic 90/14 needle and a lower machine speed. The many small curls make stiff flat metallic thread more likely to twist or break.

Why can the frame become oval after unhooping?

The usual cause is fabric stretch or insufficient support, not the square file dimensions. Hoop woven fabric on grain, stabilize the full stitched area and avoid pulling the textile tight inside the hoop.
