Five Gold Rings ITH Christmas Ornament Machine Embroidery Design - 3 Sizes
By knowing the speed of your embroidery machine, you can find out how long it will take to embroider a design.
To use the embroidery calculator, click on the number of stitches in the product description.

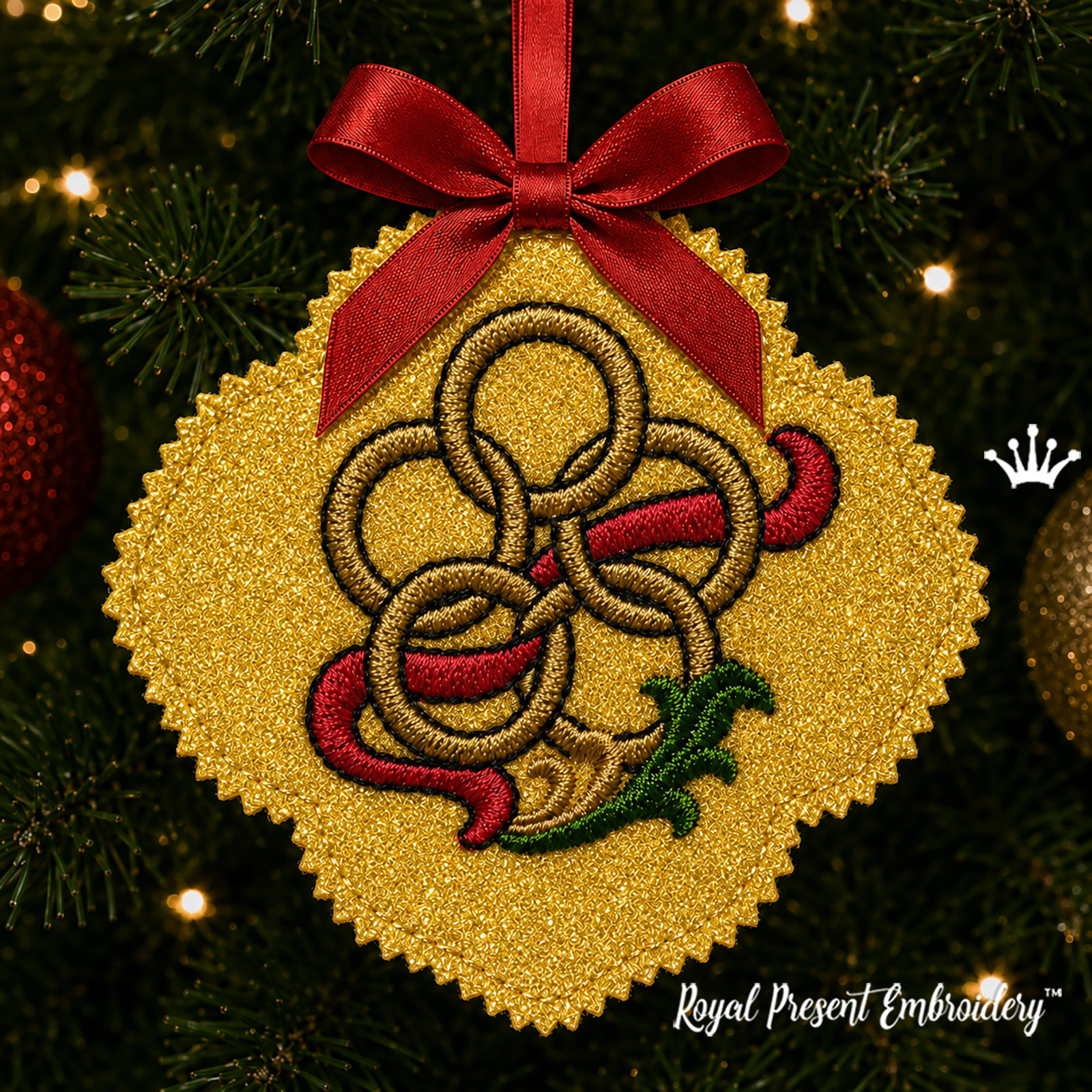

Five Gold Rings is a digital machine embroidery design for a flat, shaped Christmas ornament made in the hoop. Five interlaced gold rings cross a flowing red ribbon, while a small evergreen flourish anchors the composition at the lower edge.
The design represents the fifth gift in The Twelve Days of Christmas. Placement, front-piece tackdown, decorative embroidery and final assembly are programmed into each file. The finished ornament has an exposed felt edge and does not need turning or stuffing.
Sizes, Stitch Counts and Formats
Size: 78.7x78.0 mm (3.10x3.07"), Stitches: 5600
Size: 89.0x88.3 mm (3.50x3.48"), Stitches: 6100
Size: 98.0x97.2 mm (3.86x3.83"), Stitches: 6700Formats: .dat, .dst, .exp, .hus, .jef, .jef+, .jpx, .pec, .pes, .sew, .vip, .vp3, .vp4, .xxx
Measurements refer to the machine file. The hanging loop and optional bow are not included in the listed height. Estimated upper-thread use is approximately 15.63 / 18.69 / 21.61 m (17.1 / 20.4 / 23.6 yd).
Design Size and Hoop
| Design size | Hoop |
|---|---|
| 78.7x78.0 mm (3.10x3.07") | 80x80 mm (3x3") hoop or larger |
| 89.0x88.3 mm (3.50x3.48") | 100x100 mm (4x4") hoop or larger |
| 98.0x97.2 mm (3.86x3.83") | 100x100 mm (4x4") hoop or larger |
What Is Included
- the Five Gold Rings ornament in three original sizes;
- printable cutting outlines for matching front and back pieces;
- built-in placement, tackdown and final assembly stitches;

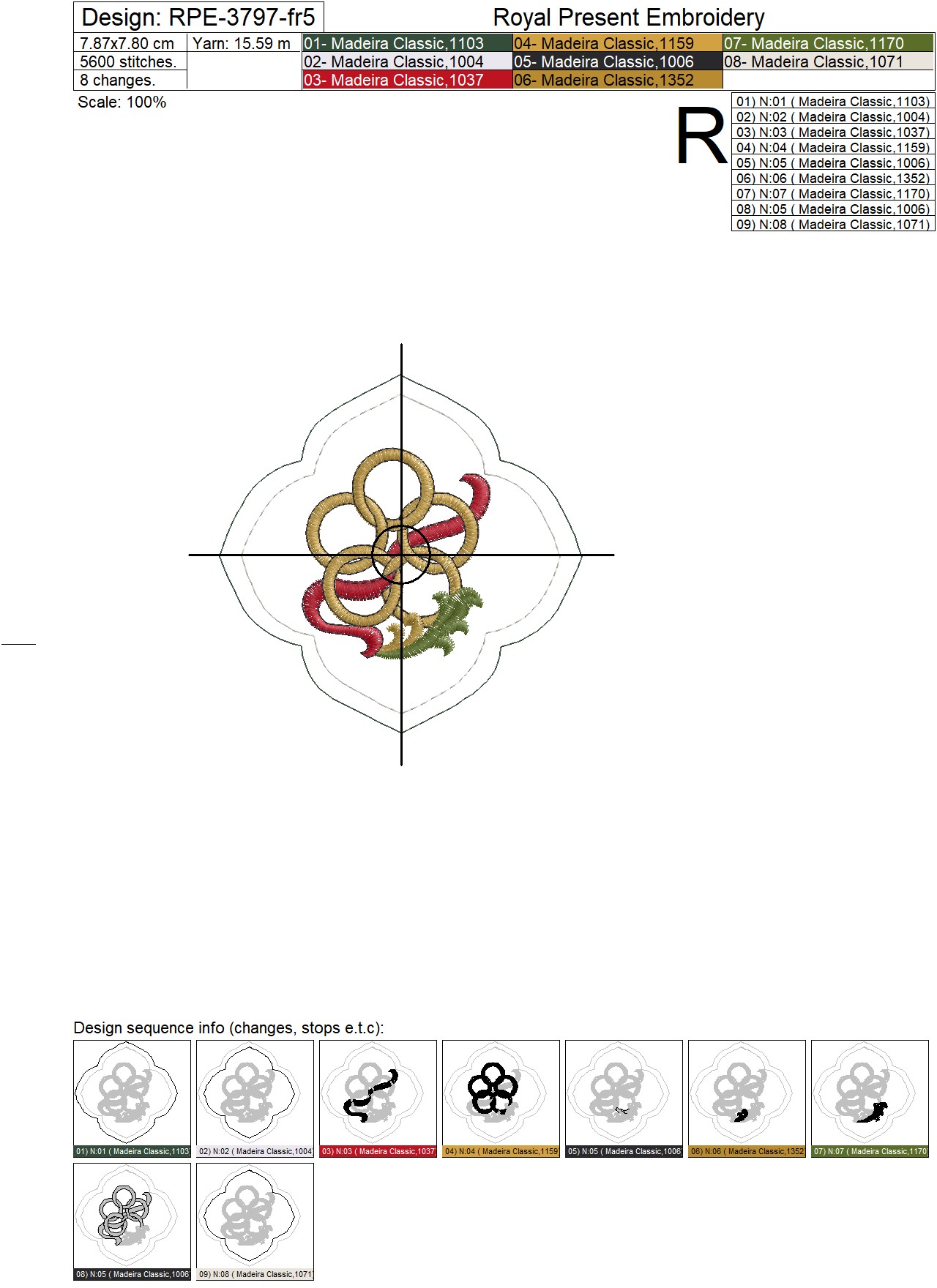

- the RPE-3797-fr5 production chart with 9 programmed blocks;
- all embroidery-machine formats listed above.
This listing contains digital files only. A finished ornament, felt, ribbon, stabilizer and thread are not shipped.
How to Assemble the Ornament
Print the supplied outline at 100% or Actual Size and cut two matching pieces from firm, non-fraying craft felt. Hoop one layer of tear-away stabilizer, run the placement line, then position and secure the front piece.
Open the Illustrated ITH Instructions
| Stage | Action | Check |
|---|---|---|
| Block 1 | Stitch the shaped placement line on the stabilizer. | The complete outline sits inside the hoop. |
| Block 2 | Cover the guide with the front felt piece and run the tackdown. | The shaped margin is even and the felt stays flat. |
| Blocks 3–8 | Stitch the red ribbon, five rings, overlap separators, gold scroll, greenery and black definition in the saved order. | Each ring reads as a separate interlaced form. |
| Before block 9 | Tape a folded hanging ribbon and the back felt piece to the reverse of the hoop. | Both ribbon ends cross the seam; the loop stays clear of the needle. |
| Block 9 | Run the final assembly outline, remove the project and trim the exposed edge. | Front, back and hanging loop are joined. |
Madeira Classic 40 Color Sequence
RPE-3797-fr5 uses 8 shades across 9 programmed blocks. Madeira 1006 appears in blocks 5 and 8. The first black stop separates the ring overlaps; the second completes the outlines after the gold scroll and green branch have stitched. Keep both stops in their original positions.
| Block | Color | Madeira Classic 40 | Stitched element |
|---|---|---|---|
| 1 | 1103 — Hunter Green | Shaped placement line | |
| 2 | 1004 — Natural White | Front-piece tackdown | |
| 3 | 1037 — Tango Red | Ribbon crossing the rings | |
| 4 | 1159 — Antique Gold | Five gold rings | |
| 5 | 1006 — Diamond Black | Ring-overlap separators | |
| 6 | 1352 — Old Gold | Lower gold scroll | |
| 7 | 1170 — Fern Green | Evergreen branch and curls | |
| 8 | 1006 — Diamond Black, repeat | Final outlines of rings, ribbon and foliage | |
| 9 | 1071 — Baby's Breath | Final seam, backing and ribbon loop |
Madeira Classic rayon already gives the rings a polished, jewelry-like sheen, so metallic thread is optional rather than required. For block 9, use bobbin thread close to 1071 because the joining seam remains visible on the back.
Materials for a Crisp Raw Edge
| Supply | Recommended choice | Purpose |
|---|---|---|
| Felt | Two pieces of firm polyester craft felt, 1–1.5 mm thick | Holds the scalloped shape and does not fray. |
| Stabilizer | Sulky Tear-Easy, OESD Medium Weight TearAway or Madeira Cotton Soft 50 g/m² | Retail-size tear-away options for home embroidery machines. |
| Needle | Fresh 75/11 embroidery needle | Passes cleanly through felt and stabilizer. |
| Upper thread | Madeira Classic 40 or quality 40-weight polyester embroidery thread | Matches the original stitch density. |
| Temporary hold | Small pieces of painter's tape or embroidery-safe temporary adhesive | Keeps felt and ribbon ends away from the needle path. |
| Hanging loop | 15–20 cm (6–8") of narrow satin or grosgrain ribbon | Forms the integrated loop for the tree. |
Three Felt Palettes for the Gold Rings
Choose a stable, sewable felt that keeps the gold rings separate from the background. Fine glitter felt can add sparkle, but the glitter should be flat and firmly bonded rather than chunky or loose.
| Look | Front | Back | Effect |
|---|---|---|---|

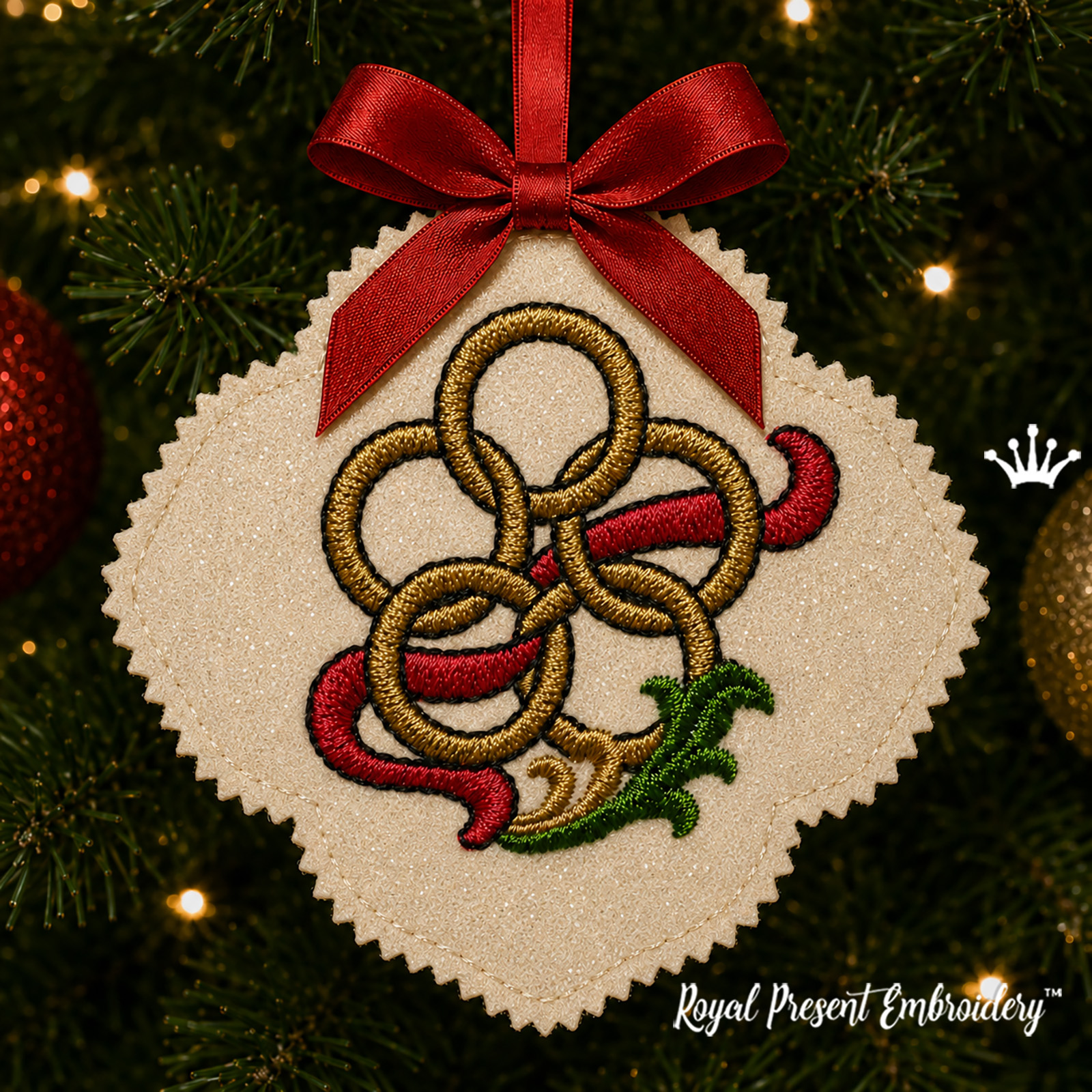

| Champagne light | ✦Ivory felt with fine gold glitter | Matte burgundy felt | A pale front keeps the black ring definition clear; the back echoes the red ribbon. |
| Evergreen contrast | Deep green matte felt | ✦Old-gold glitter felt | The rings and red ribbon stand out strongly against a tree-colored ground. |
| Midnight sapphire | Dark blue matte felt | ✦Light champagne glitter felt | Cool blue makes the two gold shades look richer without competing with the greenery. |
Test glitter felt with a short stitched sample before starting the ornament. A suitable sheet stays flexible, does not split around needle holes and leaves no hard particles on the needle. Avoid adhesive-backed craft sheets and glitter EVA foam.
Tips for Clean Interlaced Rings
- Keep blocks 4–8 in sequence. The over-and-under effect depends on gold stitching, black separators and the final black definition occurring in the programmed order.
- Before block 4, test upper-thread tension on a felt scrap. Bobbin thread should not show inside the satin rings.
- Use a steady medium machine speed through the tight ring curves; extremely slow stitching is unnecessary on firm craft felt.
- Do not trim jump stitches across the ring group until the machine has completed that color stop and the hoop is stationary.
- Remove the tear-away before using pinking shears, then keep an even margin outside the final assembly seam.
The Fifth Day of Christmas
Five Gold Rings is the fifth gift named in The Twelve Days of Christmas. Here the rings are gathered by a red ribbon and balanced by a small evergreen flourish, giving the traditional lyric a compact baroque ornament format.
Use the finished piece on a Christmas tree, wreath or garland, as a textile gift tag, or as one chapter in a complete twelve-ornament display.
Continue with the Newest Twelve Days Ornaments
Useful Embroidery Pages
- Raw-edge ornaments in-the-hoop instructions
- In-the-hoop machine embroidery designs
- Twelve Days of Christmas machine embroidery designs
- Madeira thread converter
- Online ZIP file extractor
Digital Download and License
After purchase, download and extract the ZIP archive, then transfer only the required size and compatible format to your embroidery machine. Compare both dimensions with the usable field of your hoop before stitching.
You may sell finished physical ornaments made with this design in small quantities. The digital files and templates may not be resold, copied, shared, gifted, exchanged or redistributed.
Frequently Asked Questions
Which size fits an 80x80 mm hoop?
The 78.7x78.0 mm (3.10x3.07") file fits an 80x80 mm (3x3") hoop or larger. The other two sizes require a 100x100 mm (4x4") hoop or larger.
Why are there five gold rings?
The design represents Five Gold Rings, the fifth gift in The Twelve Days of Christmas.
Do I need metallic thread?
No. Madeira Classic 1159 and 1352 provide two warm gold shades with natural rayon shine. Metallic thread is optional and would require separate tension testing.
What felt works best?
Use firm, evenly made polyester craft felt 1–1.5 mm thick. Matte felt or sewable fine-glitter felt works; avoid adhesive-backed sheets, soft loose felt and EVA foam.
When do I add the backing and ribbon?
Add them after black block 8 and before block 9. The final Baby's Breath seam secures both felt pieces and the ribbon ends.
Does the ornament need turning or stuffing?
No. It is a flat raw-edge ITH project assembled directly in the hoop.
