Floral Cross with Bow and Scrollwork Machine Embroidery Design – 5x7 Hoop

By knowing the speed of your embroidery machine, you can find out how long it will take to embroider a design.
To use the embroidery calculator, click on the number of stitches in the product description.

The Floral Cross with Bow and Scrollwork Machine Embroidery Design is a light, vertical composition created for christening and baptism textiles. A small cross formed from flowers rises above a large ribbon bow, while a central blossom, fine foliage, tiny flowers and symmetrical scrolls extend across the lower part of the motif. The open construction keeps the design delicate on white satin, linen and ceremonial fabric instead of turning it into a heavy filled emblem.

This listing contains one professionally digitized size measuring 99.4x153.2 mm / 9.94x15.32 cm / 3.91x6.03 in. The proportions are especially effective on the skirt panel of a christening gown, the decorated end of a baptism towel, a ceremonial pillow, blanket panel, Bible cover or framed textile keepsake.

The purchase includes the digital machine-embroidery files only. A finished gown, towel, pillow, fabric, thread, stabilizer, lace and physical embroidery are not included.

Size: 99.4x153.2 mm (3.91x6.03 "), Stitches: 8501
Formats: .dst, .jef, .pec, .vip, .hus, .pes, .exp, .sew, .dat, .vp3, art

The archive contains one floral-cross motif in one prepared size, not a set of several separate designs.

Hoop and Embroidery Field Requirements

A 130x180 mm / 13x18 cm / 5.12x7.09 in field, commonly called a 5x7 hoop, is the reliable choice. The file is 99.4 mm / 9.94 cm / 3.91 in wide, so it leaves comfortable clearance inside a 130 mm / 13 cm / 5.12 in field.

The design can appear to fit a 100x170 mm / 10x17 cm / 3.94x6.69 in field on paper, but it leaves only 0.6 mm / 0.06 cm / 0.02 in of total width clearance. Many machines reserve an internal safety margin and may reject the file. Use a 130x180 mm / 13x18 cm / 5.12x7.09 in hoop unless the machine manufacturer confirms the full usable field and the boundary trace passes without approaching the hoop edge. Read the hoop size and usable embroidery field guide before relying on a nominal hoop label.

This design does not fit a standard 100x100 mm / 10x10 cm / 3.94x3.94 in field, commonly called a 4x4 hoop.

Original Madeira Classic Rayon Color Sequence

The source color chart uses Madeira Classic Rayon No. 40 and contains three programmed blocks with two thread changes. It lists a total thread estimate of approximately 35.68 m / 39.02 yd.

Original Palette at a Glance

The Floral Cross with Bow and Scrollwork Machine Embroidery Design is a light, vertical composition created for christening and baptism textiles. A small cross formed from flowers rises above a large ribbon bow, while a central blossom, fine foliage, tiny flowers and symmetrical scrolls extend across the lower part of the motif. The open construction keeps the design delicate on white satin, linen and ceremonial fabric instead of turning it into a heavy filled emblem.

This listing contains one professionally digitized size measuring 99.4x153.2 mm / 9.94x15.32 cm / 3.91x6.03 in. The proportions are especially effective on the skirt panel of a christening gown, the decorated end of a baptism towel, a ceremonial pillow, blanket panel, Bible cover or framed textile keepsake.

The purchase includes the digital machine-embroidery files only. A finished gown, towel, pillow, fabric, thread, stabilizer, lace and physical embroidery are not included.

By knowing the speed of your embroidery machine, you can find out how long it will take to embroider a design.
To use the embroidery calculator, click on the number of stitches in the product description.

Size: 99.4x153.2 mm (3.91x6.03 "), Stitches: 8501
Formats: .dst, .jef, .pec, .vip, .hus, .pes, .exp, .sew, .dat, .vp3, art

SKU: RPE-883-03. The archive contains one floral-cross motif in one prepared size, not a set of several separate designs.

Hoop and Embroidery Field Requirements

A 130x180 mm / 13x18 cm / 5.12x7.09 in field, commonly called a 5x7 hoop, is the reliable choice. The file is 99.4 mm / 9.94 cm / 3.91 in wide, so it leaves comfortable clearance inside a 130 mm / 13 cm / 5.12 in field.

The design can appear to fit a 100x170 mm / 10x17 cm / 3.94x6.69 in field on paper, but it leaves only 0.6 mm / 0.06 cm / 0.02 in of total width clearance. Many machines reserve an internal safety margin and may reject the file. Use a 130x180 mm / 13x18 cm / 5.12x7.09 in hoop unless the machine manufacturer confirms the full usable field and the boundary trace passes without approaching the hoop edge. Read the hoop size and usable embroidery field guide before relying on a nominal hoop label.

This design does not fit a standard 100x100 mm / 10x10 cm / 3.94x3.94 in field, commonly called a 4x4 hoop.

Original Madeira Classic Rayon Color Sequence

The source color chart uses Madeira Classic Rayon No. 40 and contains three programmed blocks with two thread changes. It lists a total thread estimate of approximately 35.68 m / 39.02 yd.

Original Palette at a Glance

The on-screen squares reproduce the shades shown in the original chart as closely as practical. They are not a substitute for a physical Madeira thread card: monitor calibration, lighting and rayon sheen alter the visible color. Use the Madeira numbers as the primary reference.

Technical note: the live product page lists 8,501 stitches, while the original color-chart image rounds or records the design as 8,500 stitches. The calculator-linked product value remains 8,501 because that is the active listing data.

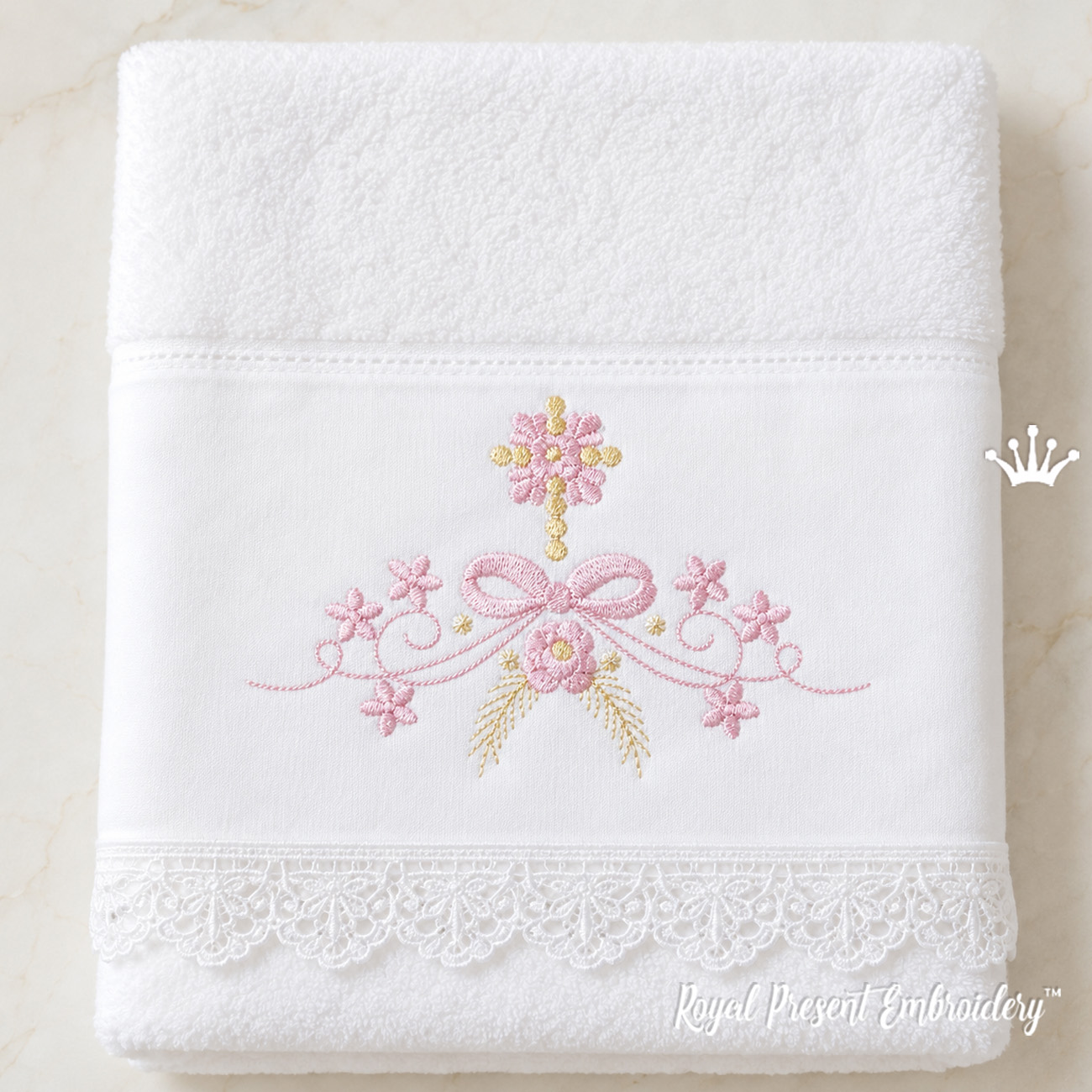

Pink Christening Colorway Shown in the Photos

The stitched sample in the gallery does not use the pale-green appearance of Madeira 1073. It replaces the first block with a pearly pink and keeps the yellow-gold and ivory details. To recreate a similar effect, use Madeira Classic 1115 Powder Puff Pink as a practical starting point for block 1, then retain 1083 Daisy for block 2 and 1071 Baby’s Breath for block 3.

Madeira 1115 is a suggested match for the photographed colorway, not the number printed on the original RPE-883-03 chart. Compare the spool against the final fabric and make a complete test stitch before embroidering an heirloom garment.

Stabilizing Satin, Linen and Towels

• Woven satin or sateen: use a soft lightweight cut-away or no-show mesh stabilizer. Hoop without stretching and protect the glossy face from hoop marks with clean tissue or a hoop guard.
• Silk satin or very delicate ceremonial fabric: test a wash-away stabilizer or fine no-show mesh on a sample from the same fabric. Confirm that water, pressing and stabilizer removal are safe for the textile.
• Linen baptism towel: use lightweight tear-away when the weave is stable. If the reverse must remain especially clean, test a wash-away backing.
• Terry towel: place firm stabilizer underneath and water-soluble film on top so the small flowers and fine scrolls remain above the loops.
• Needle and speed: start with a new 75/11 embroidery needle and approximately 500–650 stitches per minute. A tightly woven or very fine satin may respond better to a new 70/10 sharp or Microtex-style needle, but test for holes and thread damage first.

Press the fabric before hooping, use a full-size printed template and mark both centerlines. Support the garment or towel beside the machine so its weight cannot pull against the moving hoop. The detailed satin embroidery guide for this floral cross includes additional preparation and test-stitch advice.

Choosing the Right Placement

The motif is 153.2 mm / 15.32 cm / 6.03 in high, so it needs an uninterrupted vertical area. Its strongest placements are the lower skirt panel of a long christening gown, the end of a baptism towel, the center of a ceremonial pillow, a blanket corner, a Bible cover or a framed heirloom panel.

A conventional baby bib is usually too small for this file despite the old one-line description on the product page. Use it on a bib only when the pattern has been measured and provides a flat embroidery area larger than 99.4x153.2 mm / 9.94x15.32 cm / 3.91x6.03 in plus seam and hoop clearance.

A name, baptism date or short dedication can be placed below the scrollwork. Assemble the complete composition in embroidery software and print it at 100% before hooping; do not overlap lettering with the fine stems or bow tails.

Download, Formats and License

After purchase, download the ZIP archive, extract it and transfer only the format supported by the embroidery machine. If the device cannot open ZIP files, use the Royal Present Online ZIP Unzip Tool.

The design may be used for personal projects and limited finished embroidered items for sale. Bulk manufacturing is not permitted. The digital embroidery files may not be copied, shared, exchanged, uploaded, repackaged or resold. See the Royal Present Embroidery Terms and Conditions of Use for the complete license.

Frequently Asked Questions

What hoop is recommended for this floral cross?

Use a 130x180 mm / 13x18 cm / 5.12x7.09 in embroidery field, commonly called a 5x7 hoop. The file measures 99.4x153.2 mm / 9.94x15.32 cm / 3.91x6.03 in.

Does the design fit a 4x4 hoop?

No. The design is 153.2 mm / 15.32 cm / 6.03 in high and therefore exceeds a standard 100x100 mm / 10x10 cm / 3.94x3.94 in field.

Can I use a 100x170 mm hoop?

Only if the machine provides the full usable field and accepts the file. The design is 99.4 mm / 9.94 cm / 3.91 in wide, leaving only 0.6 mm / 0.06 cm / 0.02 in of total width clearance. A 130x180 mm / 13x18 cm / 5.12x7.09 in field is the safer recommendation.

How many colors and thread changes are programmed?

The original chart contains three unique Madeira Classic Rayon shades in three programmed blocks, producing two thread changes: 1073, 1083 and 1071.

Why does the photographed embroidery look pink?

The photographed sample replaces the chart’s pale-green first block with pearly pink. Madeira Classic 1115 Powder Puff Pink is a suggested starting point for recreating that appearance; it is not the first number printed on the original chart.

Is the design suitable for a baby bib?

Usually not. The file is 153.2 mm / 15.32 cm / 6.03 in high, so most conventional bibs do not provide enough flat embroidery area. Measure the actual bib pattern and hoop clearance before deciding.

What stabilizer should I use on a christening gown?

For stable woven satin, begin with soft lightweight cut-away or no-show mesh. For silk, sheer or specialty ceremonial fabric, test the complete fabric, stabilizer, needle and thread combination before embroidering the finished garment.

Can I resize the embroidery file?

Strong scaling can alter stitch density, pull compensation, satin-column width and the alignment of the fine scrollwork. If another size is required, use the professional embroidery design resizing service with stitch recalculation.

Which machine formats are included?

The active listing specifies DST, JEF, PEC, VIP, HUS, PES, EXP, SEW, DAT, VP3 and ART.

What exactly will I receive?

You will receive a ZIP archive containing one digital machine-embroidery design in the listed size and formats. No finished gown, towel, pillow, fabric, thread, lace or stabilizer is shipped.

Can I sell finished products embroidered with this design?

Yes. You may sell a limited number of finished physical products embroidered with the design. The digital files themselves may not be copied, shared, resold or redistributed, and factory-scale production is not included.
